Product Details
＋

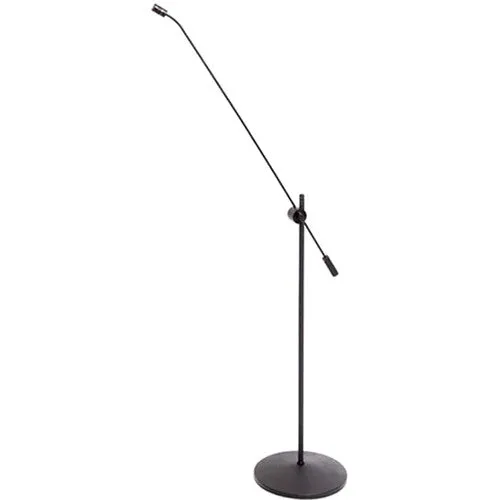

The 4018FJS Supercardioid Microphone from DPA features a 75cm floor boom stand and is designed for capturing professional-grade audio. It can be used in venues such as live stage shows, broadcast studios, recording studios, public speaking events, and similar applications. The microphone contains a supercardioid capsule for a smooth and uniform off-axis frequency response. Additionally, the supercardioid shape is frequency independent, providing an identical sound color around the microphone. When used for voice, the microphone has a natural response and offers accurate and clear sound. The 4018FJS provides a frequency range of 20 Hz to 20 kHz and is powered by 48V of phantom power.
- Wide dynamic range
- Includes 75cm floor stand
- Voice intelligibility straight out of the mic, no equalization is needed to remove microphone artifacts
- THe 4018FJS capsule is a reference standard for its low-distortion and linear approach when used with musical instruments
- Maximum RFI rejection due to the impedance balanced active drive, which provides common mode rejection at or above 60 dB
- Provides an accurate and transparent sound
DPA Microphones 4018-DF-F-B01-120 Specs
Microphone
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Diaphragm | 0.75" / 19 mm |
| Polar Pattern | Supercardioid |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 142 dB SPL |
| Impedance | 100 Ohms |
| Load Impedance | 2 Kilohms |
| Sensitivity | -38.4 dB at 1 kHz |
| Dynamic Range | 121 dB |
| Signal-to-Noise Ratio | 78 dB A-Weighted |
| Equivalent Noise Level | 16 dB A-Weighted |
| THD | < 1% |
| CMRR | 40 dB |
Power
| Operating Voltage | 48 V ± 4 V |
| Operating Current Consumption | 3.5 mA |
Physical
| Operating Temperature | -40 to 113°F / -40 to 45°C |
| Operating Humidity | 90% |
| Dimensions | ø: 0.75" / ø: 19 mm |
