Product Details
＋

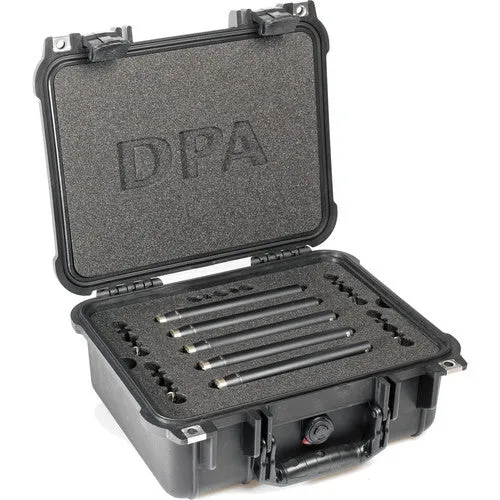

The 5006A Surround Microphone Kit from DPA Microphones includes five 4006A omnidirectional microphones, matched within 0.5dB on both frequency response and sensitivity. They can be used for AB stereo, Decca Tree, or surround main array recording techniques for orchestral settings. DPA includes mic holders, grids, and windscreens for all mics. The included Peli foam-lined case can be used for transportation and storage.
- 5 carefully matched microphones
- Suitable for Decca Tree and rear omni surround array
- Especially useful for acoustically accurate reproductions
- Peli case for transportation and protection
DPA Microphones 5006A Specs
| Transducer | Pressure, Pre-Polarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 10 Hz to 20 kHz |
| Sensitivity | Nominal ± 2 dB at 250Hz: 40 mV/Pa; -28 dB re. 1 V/Pa |
| EIN | Equivalent Noise Level, A-Weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)) Equivalent Noise Level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB) |
| Signal-to-Noise Ratio | Typ. 79 dB(A) |
| THD | < 1 % up to 139 dB SPL peak |
| Minimum Load Impedance | 2k ohm |
| Dynamic Range | Typ. 124 dB |
| Max Input Sound Level (SPL) | 147 dB |
| Attenuation / Gain | Switchable attenuator: 0 dB / -20 dB |
| Output Impedance | < 200 ohm |
| Cable Drive Capability | Up to 328' (100m) with DAD6001 XLR adapter |
| Output | Connector: 3-pin XLR Output Balance Principle: Impedance balancing with Active Drive |
| Common Mode Rejection | > 60 dB |
| Color | Matte Black |
| Power Supply | Power Supply: 48 V Phantom Power ( /- 4 V) Current Consumption: 2.8 mA Output Voltage: > 4 V |
| Polarity | V at Pin 2 for positive sound pressure |
| Temperature Range | -40 ° to 122 °F (-40 ° to 50 °C) |
| Relative Humidity | Up to 90% |
| Dimensions | 0.63 x 6.70" (16.00 x 170.00 mm) |
| Weight | 5.7 oz (163.0g) |
Packaging Info
| Box Dimensions (LxWxH) | 12 x 12 x 10" |
